Products / BATMAN AIO
Production Ready
NDAA Compliant
Flight Controller + 4-In-1 ESC
BATMAN AIO
An integrated flight controller and 4-in-1 ESC stack delivering compact, military-grade reliability and seamless system connectivity for tactical UAV platforms — flight control, motor drive, and telemetry routing on a single board footprint.
Flight-Proven & Shipping
Technical Specifications

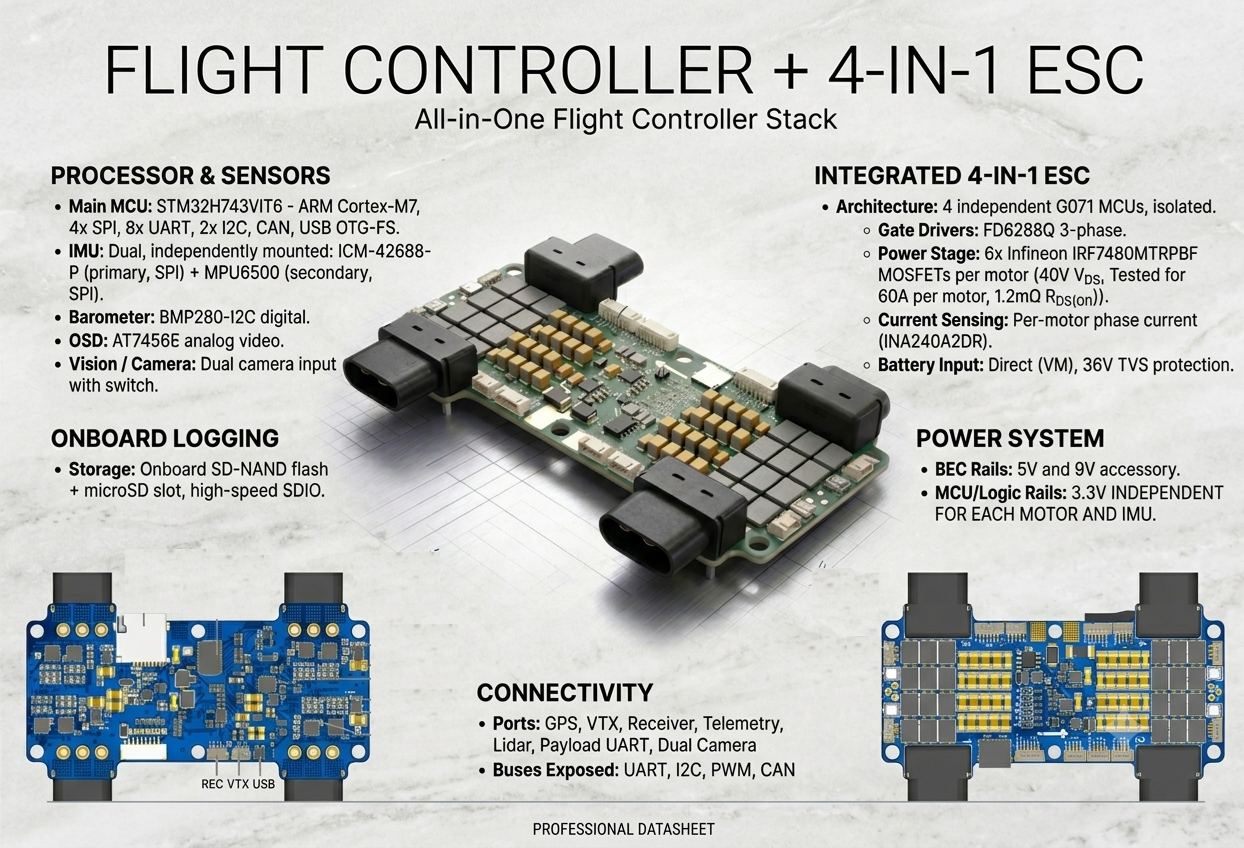

Full Spec Sheet
Processor & Sensors
MCU, IMU & Onboard Sensing
Main MCUSTM32H743VIT6 — ARM Cortex-M7
MCU Buses4× SPI, 8× UART, 2× I²C, CAN, USB OTG-FS
IMUDual, independently mounted: ICM-42688-P (primary, SPI) + MPU6500 (secondary, SPI)
BarometerBMP280, I²C digital
OSDAT7456E analog video
Vision / CameraDual camera input with switch
Onboard Logging
Storage
StorageOnboard SD-NAND flash + microSD slot
InterfaceHigh-speed SDIO
Integrated 4-In-1 ESC
Motor Drive Architecture
Architecture4× independent G071 MCUs, isolated
Gate DriversFD6288Q, 3-phase
Power Stage6× Infineon IRF7480MTRPBF MOSFETs per motor
Rating40V VDS, tested 60A per motor, 1.2mΩ RDS(on)
Current SensingPer-motor phase current (INA240A2DR)
Battery InputDirect (VM), 36V TVS transient protection
Power System
Rails & Regulation
BEC Rails5V and 9V accessory output
MCU / Logic Rails3.3V, independent for each motor and IMU
Recommended Input3–8S LiPo (11.1–33.6V) via direct VM
Connectivity
Ports & Buses
PortsGPS, VTX, Receiver, Telemetry, Lidar, Payload UART, Dual Camera
Buses ExposedUART, I²C, PWM, CAN
Physical & Environmental
Mechanical
Operating Temp−20°C to +65°C
BuildVibration-hardened, conformal-coated assembly
Vibration StandardMIL-STD-810H validated
Approx. Dimensions87 × 38 × 12mm
Approx. Weight42g
Firmware & Software
Flight Controller & ESC Software
BATMAN AIO ships open to the firmware stacks your team already knows — flash, configure, and tune with standard open-source tooling.
Supported
Flight Controller Software
iNav and Betaflight, flashed and configured via their standard configurators over USB.
Supported
ESC Software
AM32, running on the integrated 4-in-1 ESC stage with full telemetry back to the flight controller.
Coming Soon
ArduPilot & PX4
Support for ArduPilot and PX4 is in active development for teams standardized on those stacks.
Ready to integrate BATMAN AIO?
Our engineering team responds to every quote and integration request within one business day.
